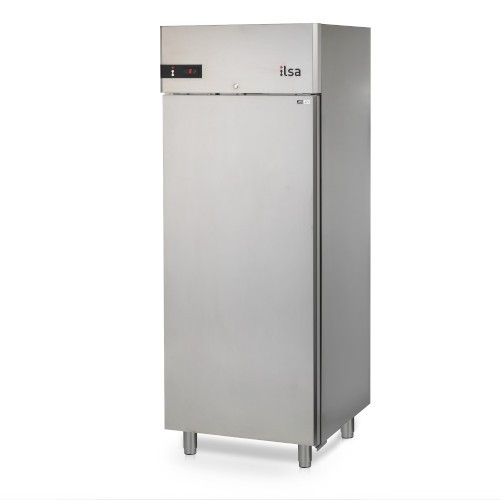

The new line of refrigerated cabinets NEOS combines elegance and reliability with high efficiency. A complete line that meets every need for food storage, fresh or frozen, ensuring maximum food safety. Constructed with a monocoque structure, they have an insulation thickness of 85mm for the sides and 65mm for the door. They are powered by a high efficiency and low energy consumption monobloc refrigeration system. Climate class 5 guarantees maximum performance even in environments up to 43 ° C. The rounded corners and the possibility to remove the racks, without the use of tools, allow a quick and easy cleaning of the cell.
General features
• -20°C -10°C
• Energy class C
• Monocoque Construction in stainless steel AISI304.
• Scotch Brite external finish.
• Ecological insulation of 85mm in high density polyurethane foam (40kg/m3) HFC free.
• Rounded edges for greater hygiene.
• Stainless steel feet AISI304 18/10 adjustable 115/165mm.
• Self-closing and reversible doors.
• Door frame with easily replaceable heater.
• Magnetic door gasket, replaceable without tools.
Equipment
• ABS tray supports adjustable every 80mm.
• Standard equipment: 3 Rislan GN 2/1 grids for each door.
• Standard lock.
• Also available with pressed side panels.
Refregerating unit
• Indirect (700lt) and central (1400lt) air circulation system for a perfect temperature uniformity.
• Tropicalized monobloc refrigerating unit (43°C).
• Refrigerant gas R290 for BT models (negative temp.) and for TN models (positive). Optional R452A and R 134a gases available.
• Cataphoresis treated evaporator with non-toxic epoxy resin.
• Automatic hot gas defrosting with pause in models 0/+10°C.
• Evaporation of condensation water with hot gas system.
• Automatic ventilation stop at door opening.
• Removable front panel to facilitate periodic maintenance (condenser cleaning).
• TOUCH control panel PJEZ type.
• Removable condenser filter.
• Remote unit version available.
Accessories
• Castors set
• Door inversion set
• LED light set
• Door pedal set
• Frame set for 60x40 pans
